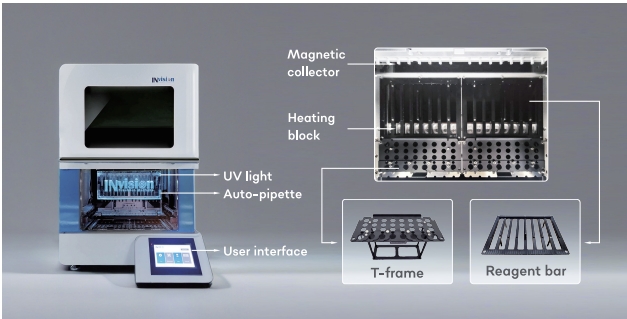

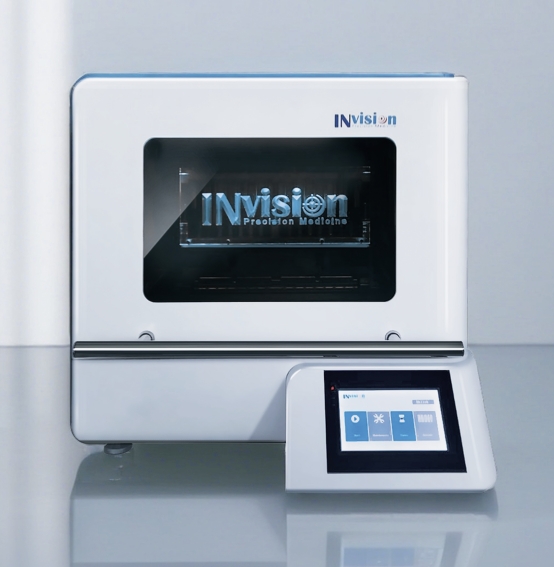

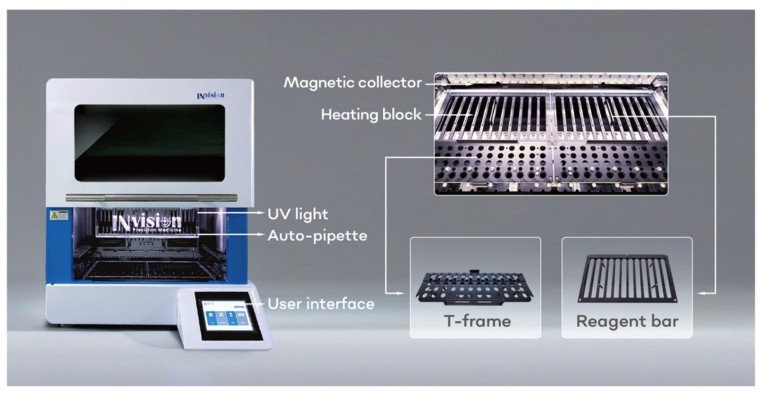

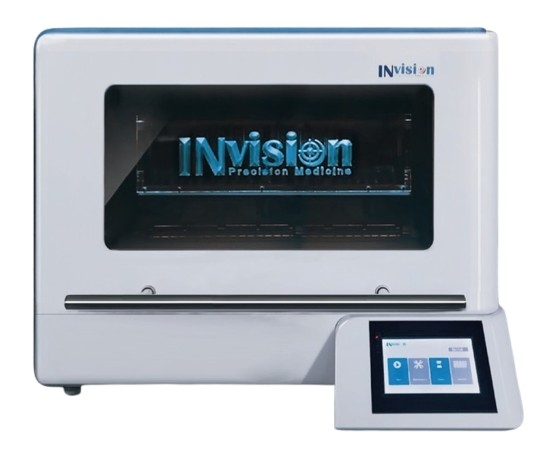

The iNA™ Automated Nucleic Acid Purification Platform is a fully automated system used for whole DNA or RNA extraction procedures with versatile liquid-handling functions.
A high-quality nucleic acid processor with fast turnaround time, high throughput processing, and outstanding sensitivity. Obtain high-operational accuracy resulting in residue-free elute products with superior yield and purity results. Minimizing human interaction mistakes and cross-contamination by using Liquid Handling and Magnetic Nanoparticle technologies.
The iNA™ Automated Nucleic Acid Purification Platform contains two systems: iNA16™ and iNA24™.
✔️ Highest nucleic acid purity, yield & reproducibility
✔️ Isolate pure, high-quality DNA or RNA
✔️ 8W UV Lamp

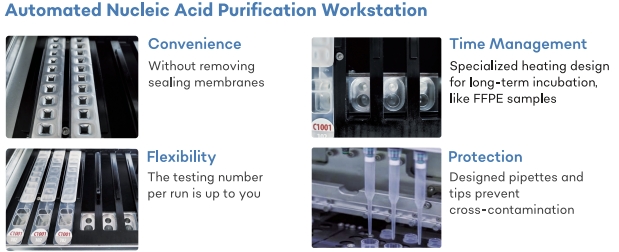

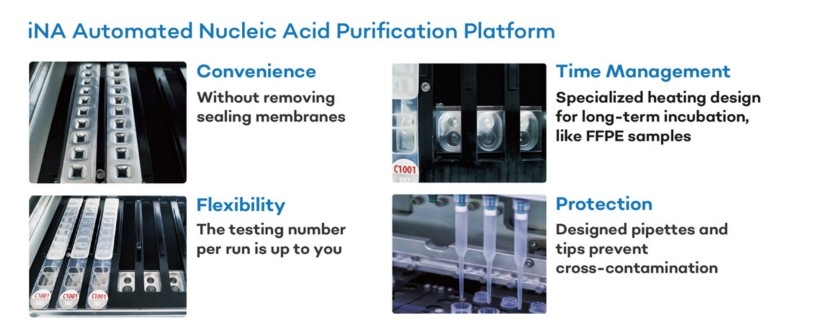

✔️ Cross-contamination prevention design

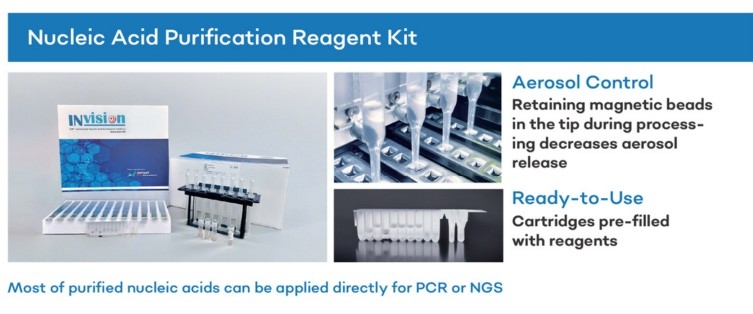

✔️ Advanced Magnetic Nano Beads
Contact us for any questions or inquiries:
Here or inb@instantnano.com
Additional Resources
• iNA™ Automated Nucleic Acid Purification Platform Brochure:
iNA Nucleic Acid Purification Platform Brochure
• iNA™ NGS Automated Library Prep Workstation:
http://www.instantnano.com/contents/products?id=10

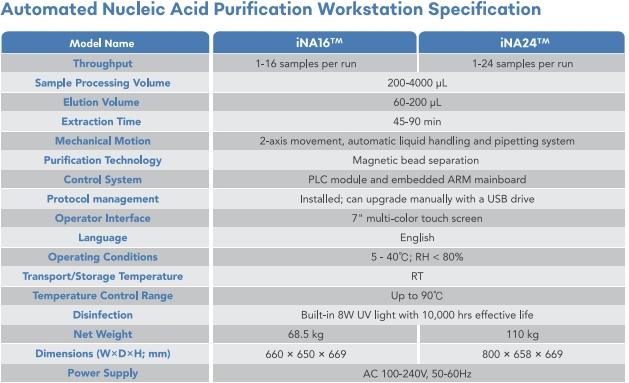

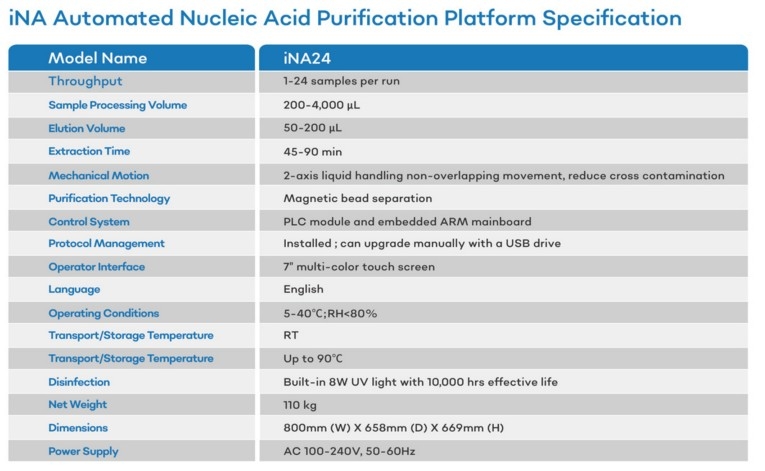

The table can be swiped left and right to view the content| Specs | iNA16™ | iNA24™ |
|---|---|---|
| Sample Throughput | 1 - 16 simultaneously | 1 - 24 simultaneously |
| Sample Forms | Liquid and most solid biological samples type and operation program | Liquid and most solid biological samples type and operation program |
| Targets | DNA or RNA | DNA or RNA |
| Operating Time | 35 - 90 minutes (depending on sample type and operating program) | 50 - 90 minutes (depending on sample type and operating program) |
| Sample Volume | 200, 400 & 1200 μl (depending on kit) | 200, 400 and 1200 μl (depending on kit) |
| Elution Volume | 30, 60, 100, 150 & 200 μl | 30, 60, 100, 150 & 200 μl |
| Operating Environment | Room Temperature (RT) | Room Temperature (RT) |
| Power Requirement | 100~240V, 50/60Hz | 100~240V, 50/60Hz |
