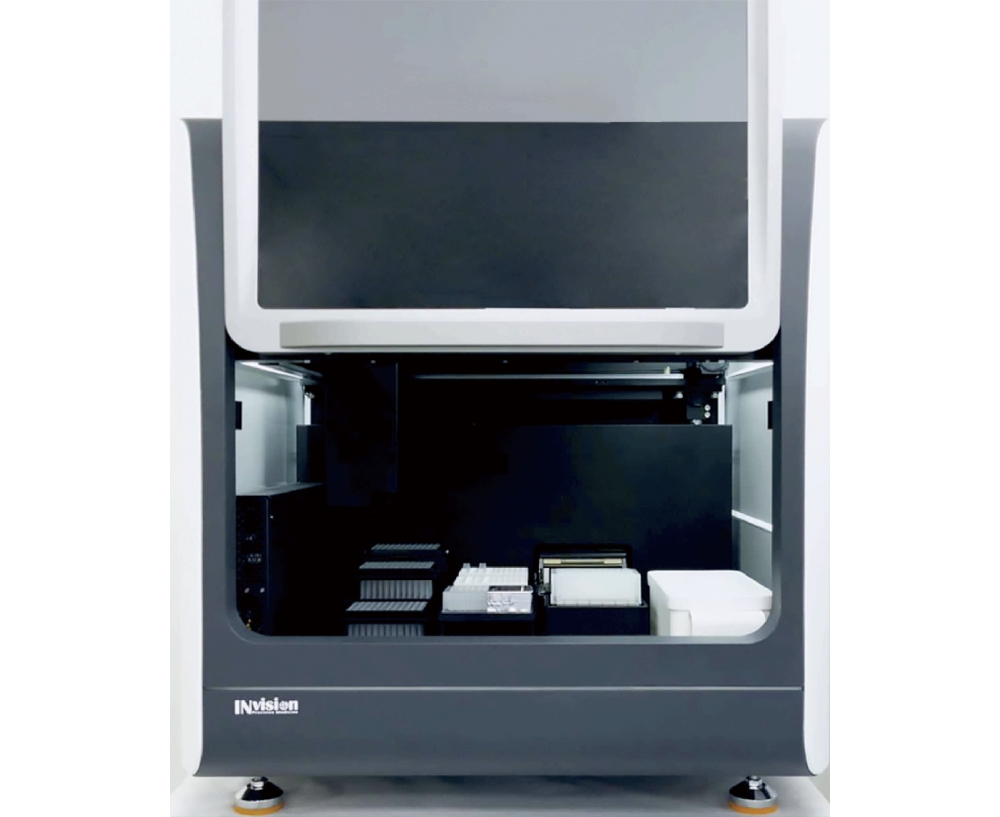

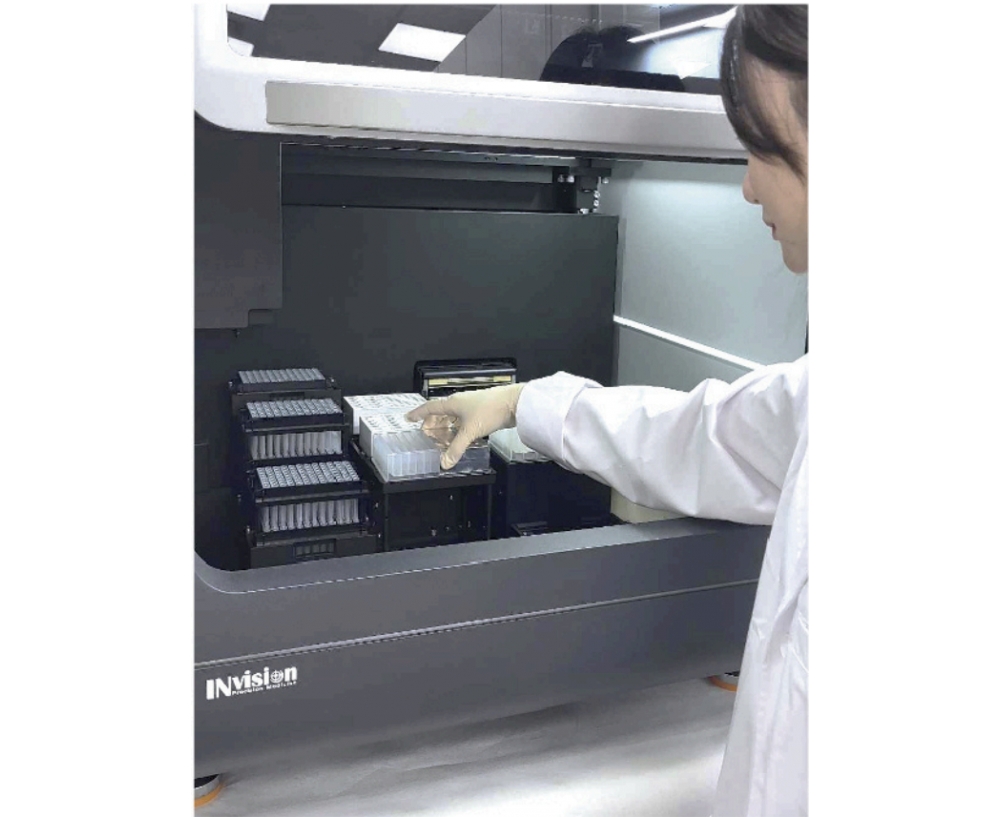

The iNA™ NGS Automated Library Prep Workstation is a fully automated workstation, focusing on the high-throughput sequencing field. The workstation is equipped with an 8-channel pipettor and adopts an automated workflow design, allowing for batch processing of samples.
The INvision workstation features high-precision liquid handling technology and a modular platform design, offering both powerful functionality and flexibility. This technology provides NGS library prep at the scale you need to eliminate tedious and repetitive manual experiment al procedures, which allow for increased efficiency, reduced errors, and save hands-on time. Automate all your pre-sequencing workflows, specifically designed for DNA library preparation for illumina platforms.
✔️ Flexible configuration offering various platform and customizable configurations
✔️ Supports 8-24 samples per run
✔️ 8-channel fixed-spacing pipette tips (1+7 liquid level sensors)
✔️ Direct measurement range from 2 μl-200μl
✔️ Robotic arm positioning accuracy: ± 0.1mm
Contact us for any questions or inquiries: Here or inb@instantnano.com
Additional Resources
• iNA™ NGS Automated Library Prep Workstation Brochure: iNA NGS Automated Library Prep Workstation Brochure
• Automated Nucleic Acid Purification Platform: http://www.instantnano.com/contents/products?id=11

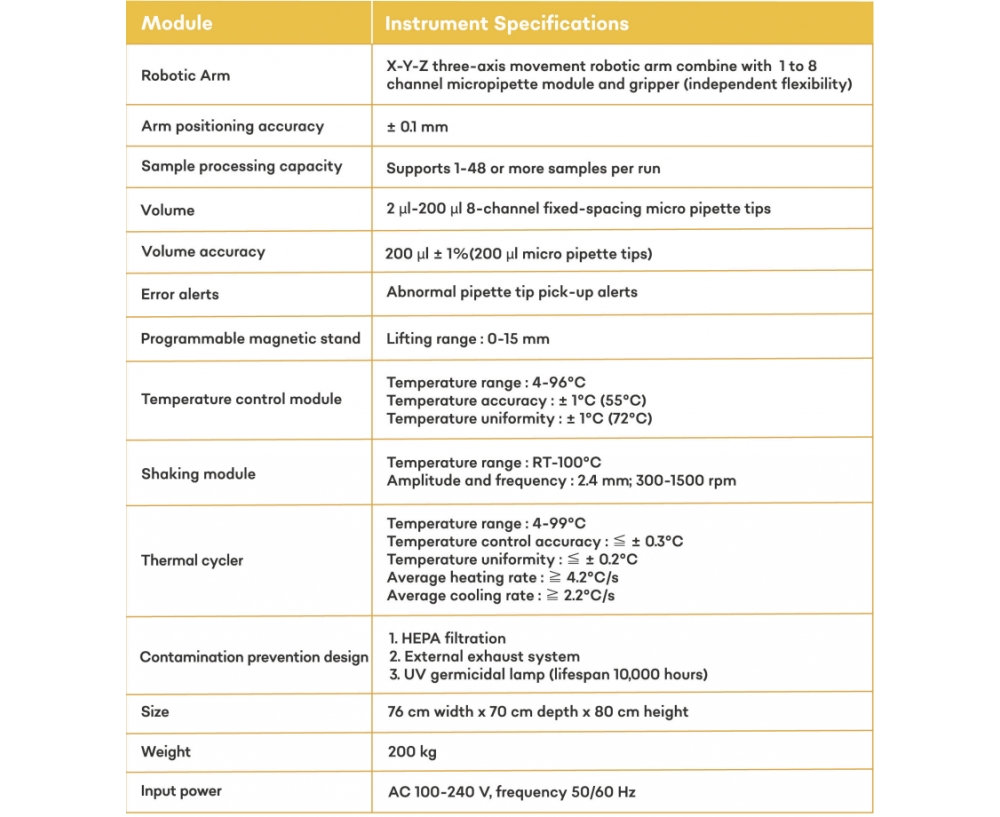

The table can be swiped left and right to view the content| Sample Processing Capacity | Supports 8~24 or more samples per run |
|---|---|
| Number of Channels | 8-channel fixed-spacing pipette module (1+7 liquid level sensors) |
| Sample Volume | 2 ~ 200 μl |
| Volume Accuracy | 200μl ± 1% (200μl micropipette tips); 2μl ± <5% (50μl micropipette tips) |
| Arm Positioning Accuracy | ± 0.1mm |
| Shaker Amplitude and Frequency | 2.4mm; 300~1500rpm/min |
| HEPA/UV/LED Enclosure | Included |
| Operating Environment | Applicable ambient temperature: 16°C ~ 40°C |
| Power Requirement | 100~240V, 50/60Hz |
| Width x Depth x Height | 76 x 70 x 80 cm |
| Weight | 200 Kg |
