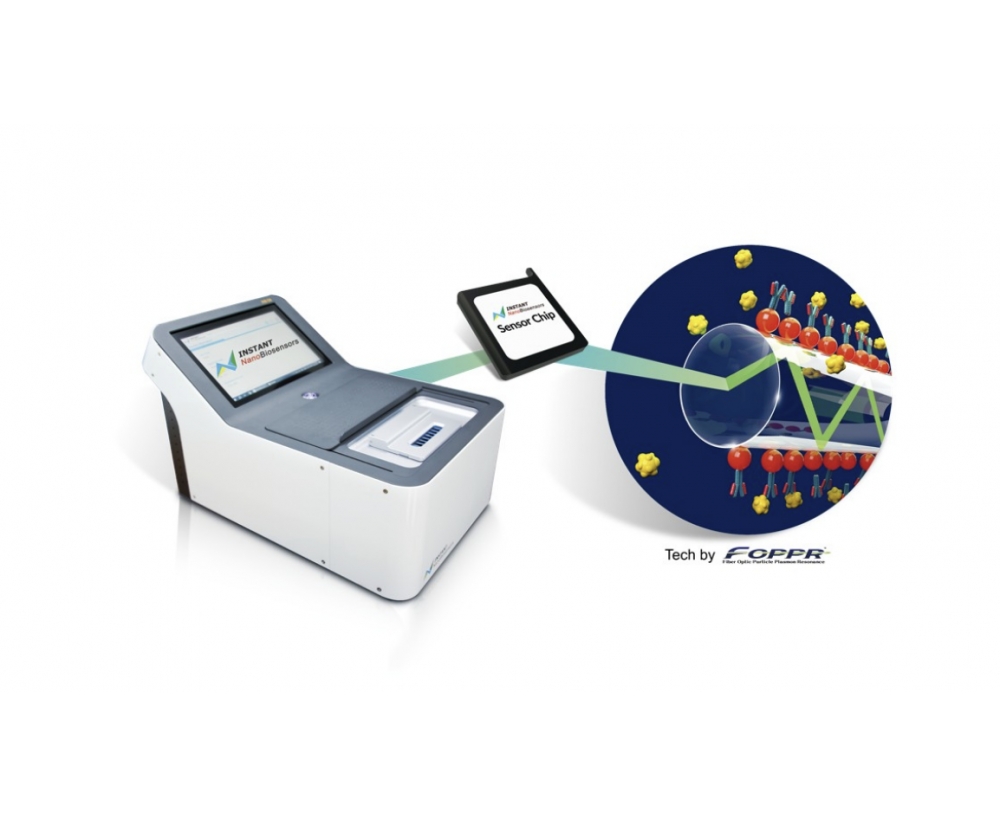

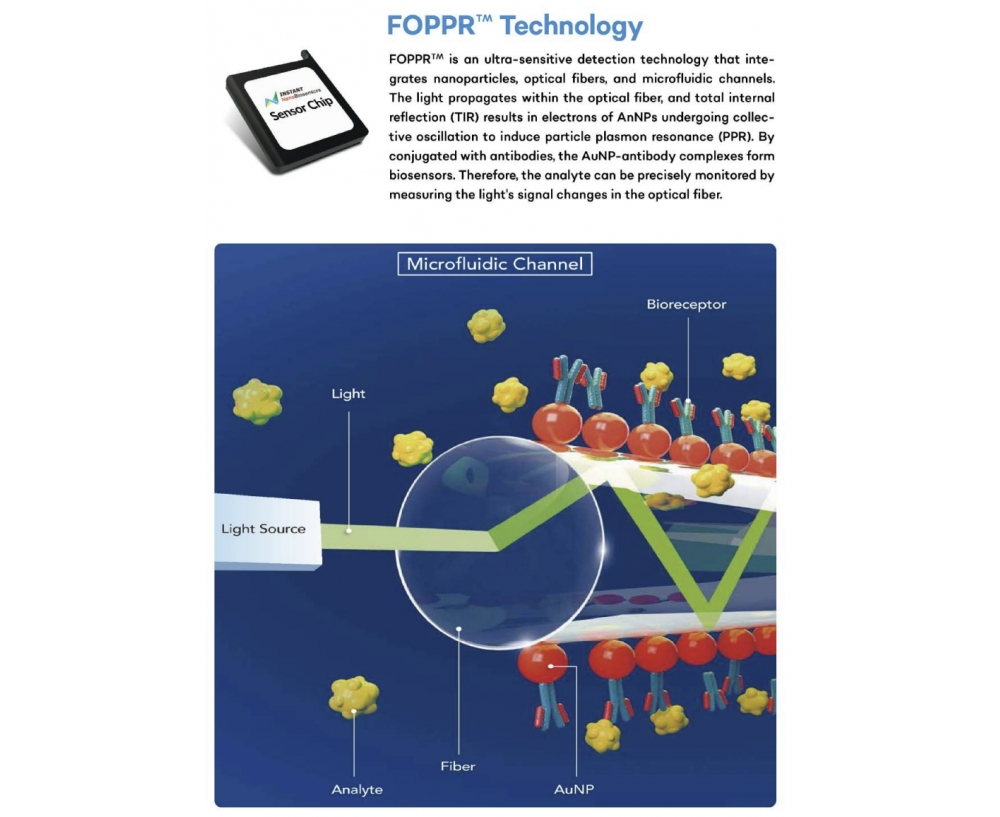

INB-D200 and INB-D8 are light-sensing Biomarker Analyzer based on our unique & patented FOPPR™ Technology (Fiber Optic Particle Plasmon Resonance), which takes advantage of multiple total internal reflections in an optical fiber coated with nano gold particles to supply scientists label-free ultrasensitive detections of up to 5 orders linear range within minutes. The easy-to-use instrument design offers self-referencing during real-time detection and it can reduce thermal or bulk-composition effects to further compensate non-specific adsorption of biomolecules in complex samples. Our platform is the best choice for Developments of Antibodies, Vaccines and other Pharmaceutical products, as well as clinical diagnostics and a variety of other demanding scientific applications.
Contact us for any questions or inquiries:
Here or inb@instantnano.com
Additional Resources
• Light-Sensing Biomarker Analyzer INB-D200 Brochure:
INB-D200 Brochure
• FOPPR™ Technology:
http://www.instantnano.com/contents/techinfo
• Sensor Chips NanoAu-MM:
http://www.instantnano.com/contents/products?id=8
• Standard Chips NanoAu-MM:
http://www.instantnano.com/contents/products?id=10

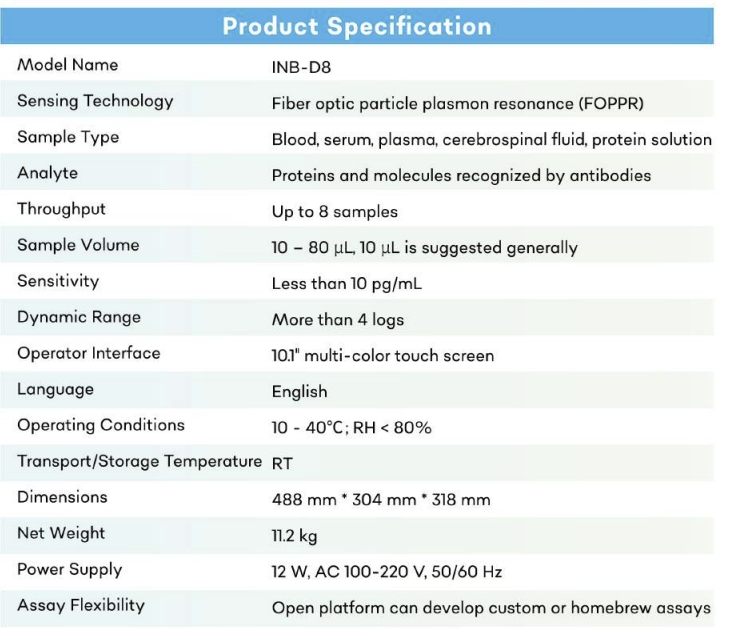

The table can be swiped left and right to view the content| Specs | INB-D200 | INB-D8 |
|---|---|---|
| Core Technology | FOPPR™ | FOPPR™ |
| Signal Obtained | Affinity, Specificity, Quantitation, Qualification | Affinity, Specificity, Quantitation, Qualification |
| Sample Type | Organic drugs, oligonucleotides, proteins, viruses, and bacteria in various environments (e.g. serum, plasma, synovial fluid, and urine) | Organic drugs, oligonucleotides, proteins, viruses, and bacteria in various environments (e.g. serum, plasma, synovial fluid, and urine) |
| Analysis Temperature | Room temperature (RT) | Room temperature (RT) |
| Molecular Weight Range | > 10 KDa | > 10 KDa |
| Signal Noise | < 0.015 % (RSD) | < 0.015 % (RSD) |
| Sensitivity | ~ pg / mL | ~ pg / mL |
| Analysis Time | 5 - 15 min | 5 - 15 min |
| Minimum Sample Volume | 10 μL (10x dilution) | 10 μL (10x dilution) |
| Maximum Sample Volume | 50 μL (10x dilution) | 50 μL (10x dilution) |
| Recording Mode of Binding Signal | Static (without syringe pump) | Static (without syringe pump) |
| Sensing Type | Label-free and real-time detection | Label-free and real-time detection |
| Number of Sensing Channels | 2 individual sensing channels | 8 individual sensing channels |
| PC Operating Systems | Microsoft Windows 7 or above | Microsoft Windows 7 or above |
| Power Requirement | 100~220V, 50/60Hz | 100~220V, 50/60Hz |
| Size | 26 x 39 x 31 cm | |
| Weight | 6 Kg |
